goBILDA

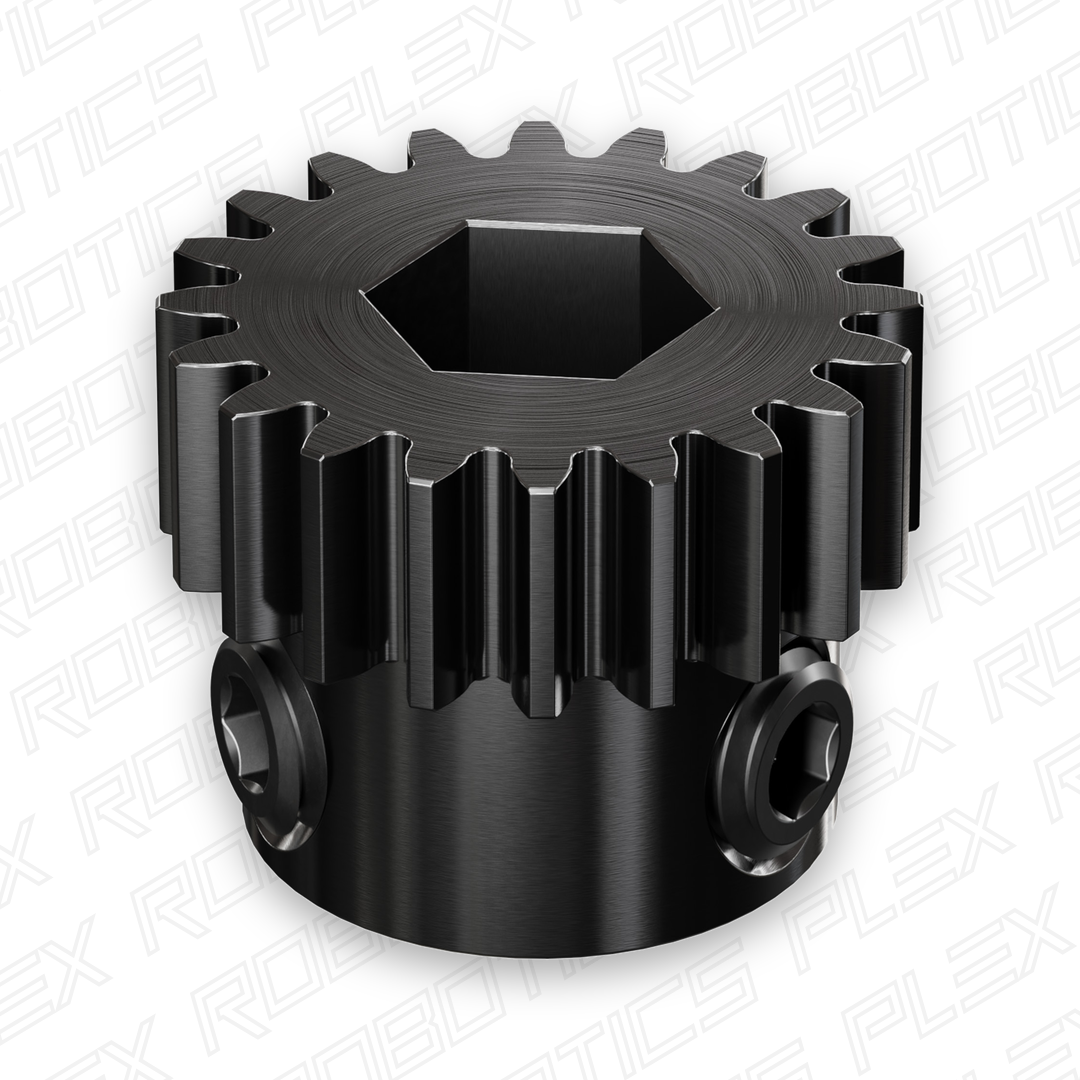

2303 Series Steel, MOD 0.8 Pinion Gear (8mm REX™ Bore)

2303 Series Steel, MOD 0.8 Pinion Gear (8mm REX™ Bore)

2303-4008-0020
Preț obișnuit 51,60 lei
Preț redus 51,60 lei
Reducere Stoc epuizat
Prețul include taxe.
⚠️ Acest produs este disponibil în regim de precomandă. Timpul estimat de livrare este de 3-12 zile lucrătoare de la confirmarea plății, în funcție de opțiunea aleasă la checkout (Economy, Standard sau Priority).
📦 Costul final de transport poate crește dacă în coș se află produse de la mai mulți furnizori (ex: 2 furnizori = 2 taxe de transport).

SKU: 2303-4008-0020

If your build is going to take a beating, consider these 8mm REX® bore gears! Their goBILDA® signature positive-drive profile, and hardened steel construction, help them to provide ultra-reliable gear action in robust projects of all kinds.

Set-Screw

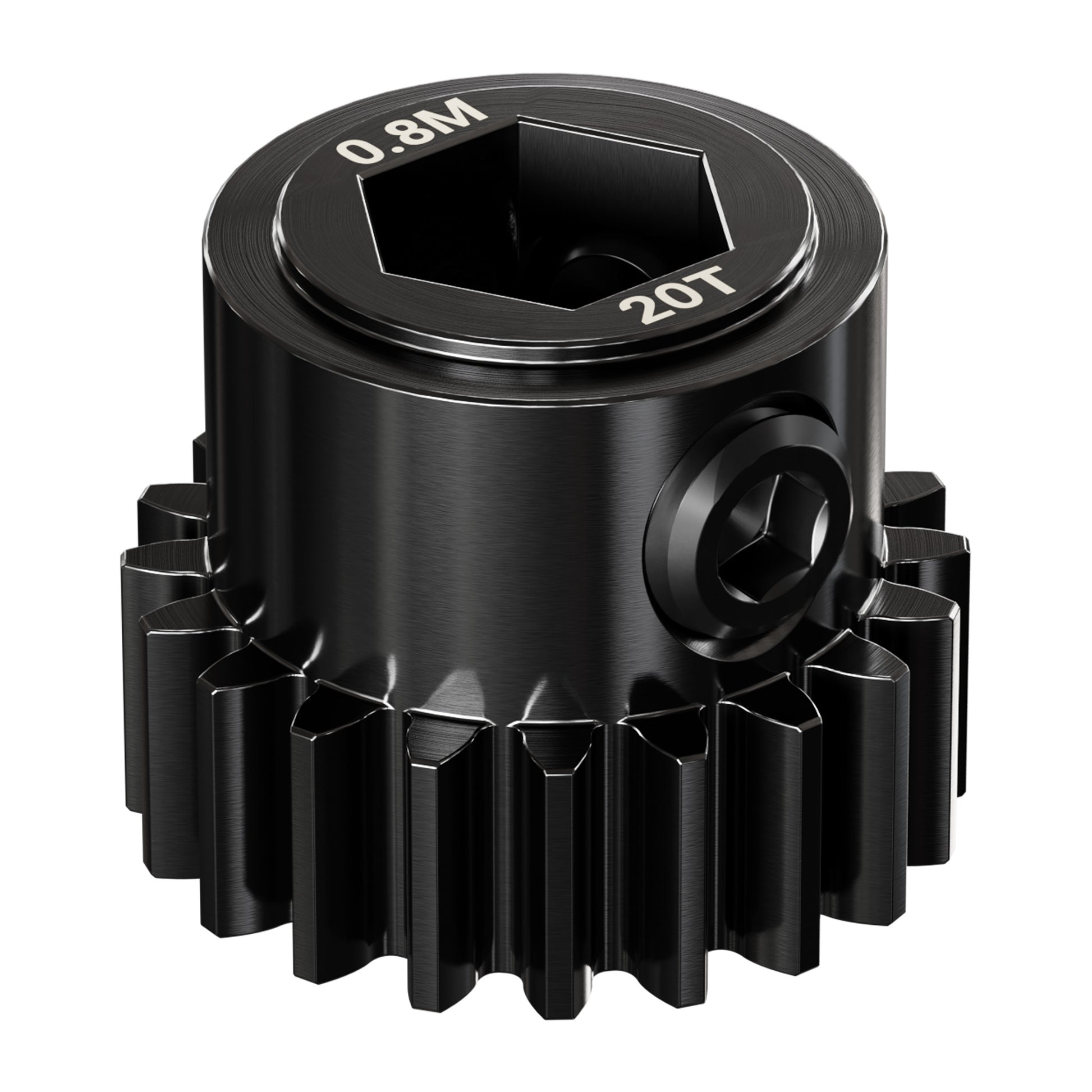

Dual set-screws provide a very compact way to axially constrain these gears on an 8mm REX® shaft, with no additional components required. And alongside the super-reliable attachment security of set-screws, each of these gears rocks a built-in shim—which provides for running them up against a bearing without contacting the bearing’s outer race!

SET-SCREW WITH THREAD-LOCKING NYLON PATCH

The set-screw included with this product features a nylon patch: a blue dollop of thread-locking magic that ensures extraordinary resistance to loosening from vibration!

Downloads

Variant STEP File Other Files
1 - 20 Tooth STEP File
2 - 24 Tooth STEP File
3 - 30 Tooth STEP File
4 - 36 Tooth STEP File
5 - 40 Tooth STEP File
